ionic tutorial - Ionic Tabs | Ionic - Tabs - ionic - ionic development - ionic 2 - ionic framework



  • Ionic tabs are most of the time used for mobile navigation.
  • Styling is optimized for different platforms.

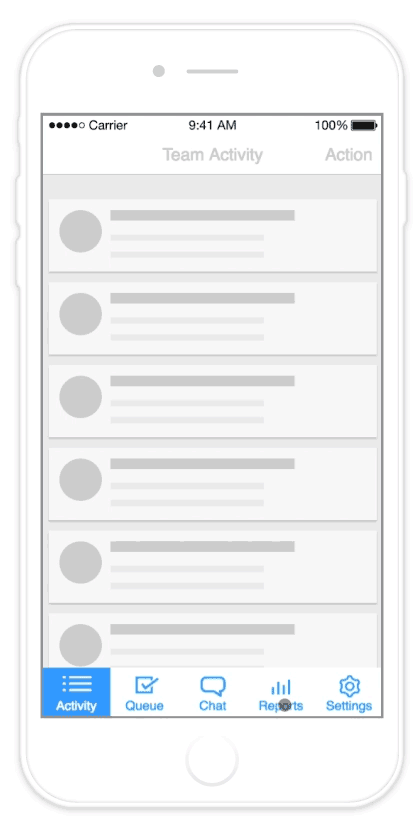

  •  ionic tab control
  • This means that on android devices, tabs will be placed at the top of the screen, while on IOS it will be at the bottom.
  • There are different ways of creating tabs. We will understand in detail, how to create tabs in this chapter.
 ionic tab
  • Tabs make it easy to navigate between different pages or functional features of an app. The Tabs component, written as , is a container of individual Tab components.
  • Each individual ion-tab is a declarative component for a NavController
  • For more information on using nav controllers like Tab or Nav, take a look at the NavController API Docs.
  • Tabs are useful pattern for any navigation type or selecting different pages inside your app.
  • The same tabs will appear at the top of the screen for Android devices and at the bottom for IOS devices.
ionic tutorial . extension , ionic framework , ionic , ionic framework book , ionic app example , ionic templates , ionic getting started

Using Tabs

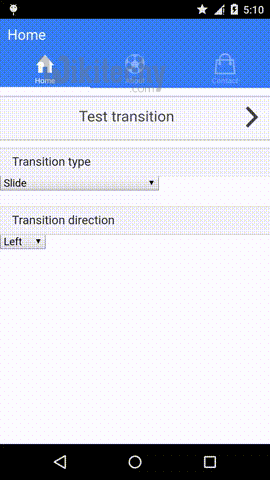

 ionic using tab
  • Tabs can be added to app using ion-tabs as a container element and ion-tab as a content element.
  • We will add it to index.html but you can add it to any HTML file inside your app. Just be sure not to add it inside ion-content to avoid CSS issues that comes with it.
ionic tutorial . extension , ionic framework , ionic , ionic framework book , ionic app example , ionic templates , ionic getting started

index.html Code

<ion-tabs class = "tabs-icon-only">

   <ion-tab title = "Home" icon-on = "ion-ios-filing"
      icon-off = "ion-ios-filing-outline"></ion-tab>

   <ion-tab title = "About" icon-on = "ion-ios-home"
      icon-off = "ion-ios-home-outline"></ion-tab>

   <ion-tab title = "Settings" icon-on = "ion-ios-star"
      icon-off = "ion-ios-star-outline"></ion-tab>

</ion-tabs>
Click below button to copy the code. From wikitechy - ionic tutorial - ionic framework tutorial - team
 ion tab
  • There is API available for ion-tab elements. You can add it as attributes as showed in example above where we used title, icon-on and icon-off.
  • The last two are used to differentiate selected tab from the rest of it. If you look at the image above, you can see that first tab is selected. You can check the rest of the attributes in the following table.
ionic tutorial . extension , ionic framework , ionic , ionic framework book , ionic app example , ionic templates , ionic getting started

Tab Attributes

Attribute Type Details
title string The title of the tab.
href string The link used for tab navigation.
icon string The icon of the tab.
icon-on string The icon of the tab when selected.
icon-off string The icon of the tab when not selected.
badge expression The badge for the tab
badge-style expression The badge style for the tab.
on-select expression Called when tab is selected
on-deselect expression Called when tab is deselected
hidden expression Used to hide the tab.
disabled expression Used to disable the tab.
  • Tabs also have its own delegate service for easier control of all the tabs inside the app.
  • It can be injected to controller and contains several methods that are shown in the table below.

Delegate Methods

Method Parameters Type Details
selectedIndex() / number Returns the index of the selected tab.
$getByHandle(parameter1) handle string Used to connect methods to the particular tab view with the same handle. Handle can be added to ion-tabs by using
delegate-handle = "my-handle" attribute.
$ionicTabsDelegate.$getByHandle('my-handle').selectedIndex();
