Slide Box

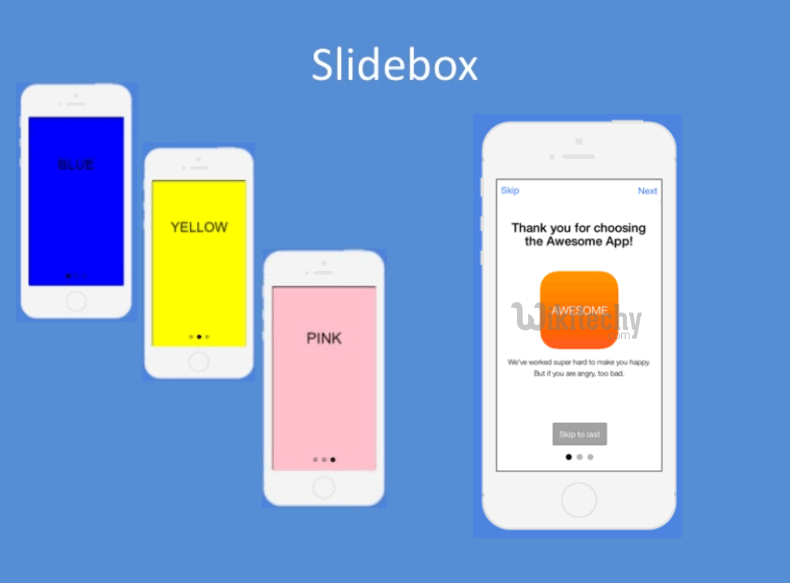

  • Slide box contains pages that can be changed by swiping the content screen.
 ionic slide box
  • Swipe left of right to navigate through different screens.
  • Great for images,but can hold any type of content.

Using Slide Box

  slide box
  • The usage of the slide box is simple. Just you want to add ion-slide-box as a container and ion-slide with box class inside that container.
  • We will add height and border to our boxes for better visibility.
ionic tutorial . extension , ionic framework , ionic , ionic framework book , ionic app example , ionic templates , ionic getting started

HTML Code

<ion-slide-box>

   <ion-slide>
      <div class = "box box1">
         <h1>Hi Wikitechy </h1>
      </div>
   </ion-slide>

   <ion-slide>
      <div class = "box box2">
         <h1>Hello Wikitechy</h1>
      </div>
   </ion-slide>

   <ion-slide>
      <div class = "box box3">
         <h1>Welcome to wikitechy website</h1>
      </div>
   </ion-slide>

</ion-slide-box>
Click below button to copy the code. From wikitechy - ionic tutorial - ionic framework tutorial - team
.box1, box2, box3 {
   height: 300px;
   border: 2px solid blue;
}
Click below button to copy the code. From wikitechy - ionic tutorial - ionic framework tutorial - team

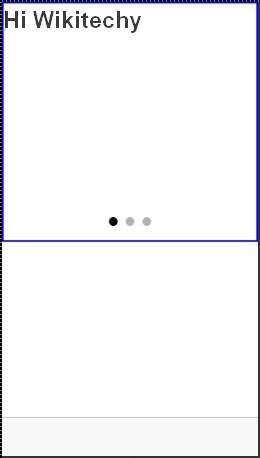

 slide box output1
  • You can change the box by dragging the content to the right. You can also drag to the left to show previous box.

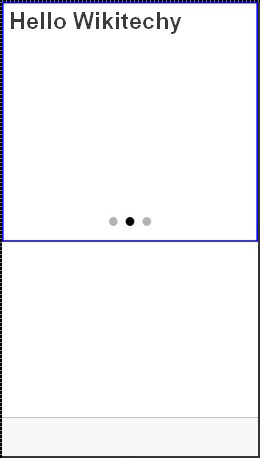

 slide box output2

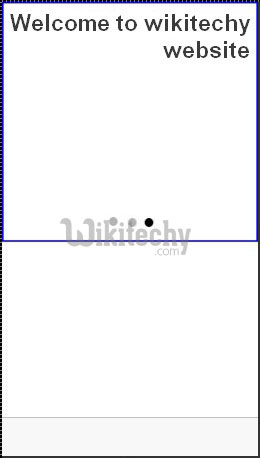

 slide box output3
ionic tutorial . extension , ionic framework , ionic , ionic framework book , ionic app example , ionic templates , ionic getting started

Attributes for controlling slide box behavior:

Delegate Methods

Attribute Type Details
does-continue boolean Should slide box loop when first or
last box is reached
auto-play boolean Should slide box automatically slide.
slide-interval number Time value between auto slide change
in milliseconds. Default
value is 4000.
show-pager boolean Should pager be visible.
pager-click expression Called when a pager is
tapped (if pager is visible). $index is
used to match with different slides.
on-slide-changed expression Called when slide is
changed. $index is used to
match with different slides.
active-slide expression Used as a model to bind the
current slide index to.
delegate-handle string string Used for slide box
identification with
$ionicSlideBoxDelegate.
ionic tutorial . extension , ionic framework , ionic , ionic framework book , ionic app example , ionic templates , ionic getting started

Slide Box Delegate

  • $ionicSlideBoxDelegate is service used for controlling all slide boxes. We need to inject it to the controller.

Controller Code

.controller('MyCtrl', function($scope, $ionicSlideBoxDelegate) {
   $scope.nextSlide = function() {
      $ionicSlideBoxDelegate.next();
   }
})
Click below button to copy the code. From wikitechy - ionic tutorial - ionic framework tutorial - team

HTML Code

<button class = "button button-icon icon ion-navicon" ng-click = "nextSlide()"></button>
Click below button to copy the code. From wikitechy - ionic tutorial - ionic framework tutorial - team
  • The following table shows $ionicSlideBoxDelegate methods.

Delegate Methods

Method Parameters Type Details
slide(parameter1,
parameter2)
to, speed number, number Parameter to represents index
to slide to. speed determines how fast is the change in milliseconds.
enableSlide(parameter1) shouldEnable boolean Used for enambling or disabling sliding.
previous(parameter1) . speed number The value in miliseconds the change should take
stop() / / Used to stop the sliding.
start() / U/sed to start the sliding.
currentIndex() / number Returns index of the curent slide.
slidesCount() / number Returns total number of the slides.
handle / string Used to connect methods
to the particular slide
box with the same handle.
$ionicSlideBoxDelegate.$getByHandle
('my-handle').start();
