AngularJS ngpattern



  • The ng-pattern in AngularJS used for add up the pattern validator to ngModel.
  • It is mainly used for text-based input controls but also applied for custom text-based controls.
  • It is used for sets the pattern validation error key if input field data does not match a RegExp that is found by evaluating the Angular expression given in the ngpattern attribute value:
    • It is used directly when the expression evaluates to a RegExp object.
    • Whenever the expression evaluates to a string, then it will be converted to a RegExp after wrapping it in ^ and $ characters.
    • For ex, "abc" will be converted to new RegExp ('^abc$').

Syntax for ng-pattern directive in AngularJS:

<element ng-pattern="expression" > </element>

Sample coding for ng-pattern directive in AngularJS:

 Tryit<!DOCTYPE html>
<html>
    <head>
        <title>Wikitechy AngularJS Tutorials</title>
        <script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.5.6/
            angular.min.js"></script>
    </head>
    <body>
        <h3>ng-pattern directive in AngularJs</h3>
        <formng-app="myApp" ng-controller="patternCtrl" name="myform">
                Enter Mobile Number :
            <input type="text" name="number" ng-model="number"
            required ng-pattern="/^[0-9]+$/" >
            <span style="color:red">
                <span ng-show="myform.number.$error.required">
                Number is required
                </span>
                <span ng-show="myform.number.$error.pattern">
                Pattern does not match
                </span></b></b>
            </span>
            <input type="submit" value="submit"/>
        </form>
        <script>
            var app = angular.module("myApp", []);
            app.controller("patternCtrl", function($scope) {
            });
        </script>
    </body>
</html>

ng-pattern directive in AngularJS:

<input type="text" name="number" ng-model="number" required  ng-pattern="/^[0-9]+$/">

Code Explanation for ng-pattern directive in AngularJS:

Code Explanation for AngularJS ngpattern

  1. The ng-appspecifies the root element (“myApp”) to define AngularJS application.
  2. The ng-controllercontrol the data of “patternCtrl” in AngularJS application.
  3. The “number” is declare the type name in <input> tag.
  4. The ng-modelbind an input field value to AngularJS application variable (“number”).
  5. The “ng-pattern” is used to specify the textbox should match the pattern specified in the regex.
  6. The <span> is used to display the warning on the required field error.
  7. The <span> is used to display the warning on pattern error.
  8. The “submit”is declare the typevalue of the <input> tag.

Sample Output for ng-pattern directive in AngularJS:

    Sample Output for AngularJS ngpattern

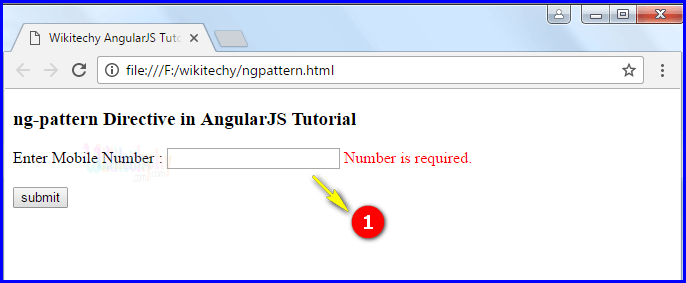

  1. If the textbox is empty, then the required field error shows the warning.
    Sample Output for AngularJS ngpattern

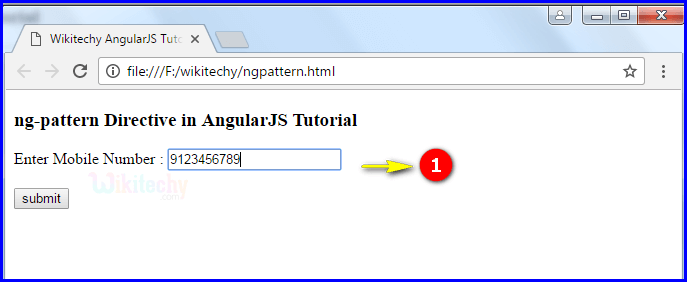

  1. If the user enters valid mobile number, there is no warning displayed.
    Sample Output for AngularJS ngpattern

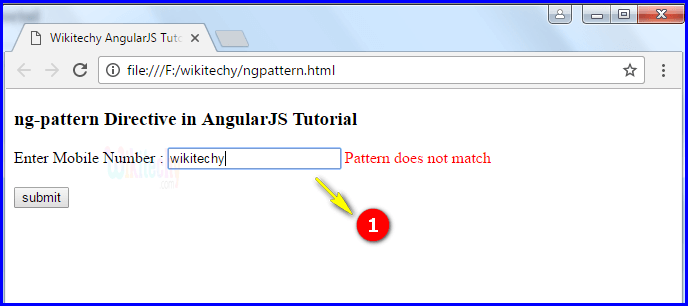

  1. If the textbox does not match the pattern, then the pattern error shows the warning.

Tips and Notes

The ng-pattern directive is added when the plain pattern attribute is used, with two differences:

  • The ng-pattern directive does not set the pattern attribute.
  • The ngpattern attribute should be an expression, while the pattern value must be inserted
