What is Switch in Angular Material?
- The md-switch, an Angular directives is used to show a switch.

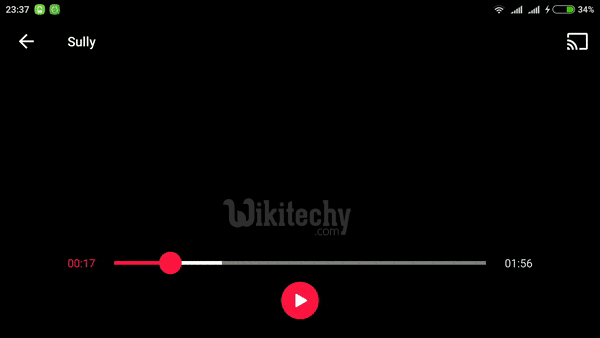

learn angular material tutorials - seekbar Example
Attributes:
| Sr.No | Parameter & Description |
|---|---|
| 1 | * ng-model The assignable angular expression to data-bind to. |
| 2 | name The property name of the form under which the control is published. |
| 3 | ng-true-value The value to which the expression should be set when selected. |
| 4 | ng-false-value The value to which the expression should be set when not selected. |
| 5 | ng-change The Angular expression to be executed when input changes due to user interaction with the input element. |
| 6 | ng-disabled En/Disable based on the expression. |
| 7 | md-no-ink The use of attribute indicates the use of ripple ink effects. |
| 8 | aria-label This publishes the button label used by the screen-readers for accessibility. This defaults to the switch's text. |
Example:
- The following example showcases the use of md-swipe-* showcase uses of swipe components.
<html lang="en" >
<head>
<link rel="stylesheet" href="https://ajax.googleapis.com/ajax/libs/angular_material/1.0.0/angular-material.min.css">
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.4.8/angular.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.4.8/angular-animate.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.4.8/angular-aria.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.4.8/angular-messages.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angular_material/1.0.0/angular-material.min.js"></script>
<link rel="stylesheet" href="https://fonts.googleapis.com/icon?family=Material+Icons">
<script language="javascript">
angular
.module('firstApplication', ['ngMaterial'])
.controller('switchController', switchController);
function switchController ($scope) {
$scope.data = {
switch1: true,
switch2: false,
switch3: false,
switch4: true,
switch5: true,
switch6: false
};
$scope.message = 'false';
$scope.onChange = function(state) {
$scope.message = state;
};
}
</script>
</head>
<body ng-app="firstApplication">
<div id="switchContainer" ng-controller="switchController as ctrl" layout="column" ng-cloak>
<md-switch ng-model="data.switch1" aria-label="Switch 1">
Switch 1: {{ data.switch1 }}
</md-switch>
<md-switch ng-model="data.switch2" aria-label="Switch 2" ng-true-value="'true'" ng-false-value="'false'" class="md-warn">
Switch 2 (md-warn): {{ data.switch2 }}
</md-switch>
<md-switch ng-disabled="true" aria-label="Disabled switch" ng-model="disabledModel">
Switch 3 (Disabled)
</md-switch>
<md-switch ng-disabled="true" aria-label="Disabled active switch" ng-model="data.switch4">
Switch 4 (Disabled, Active)
</md-switch>
<md-switch class="md-primary" md-no-ink aria-label="Switch No Ink" ng-model="data.switch5">
Switch 5 (md-primary): No Ink
</md-switch>
<md-switch ng-model="data.switch6" aria-label="Switch 6" ng-change="onChange(data.switch6)">
Switch 6 : {{ message }}
</md-switch>
</div>
</body>
</html>
