General notes on JMS: There are currently two JMS samplers. One uses JMS topics and the other uses queues. Topic messages are commonly known as pub/sub messaging.
Topic messaging is generally used in cases where a message is published by a producer and consumed by multiple subscribers.
Queue messaging is generally used for transactions where the sender expects a response. Messaging systems are quite different from normal HTTP requests.
In HTTP, a single user sends a request and gets a response. Messaging system can work in synchronous and asynchronous mode.

learn apache jmeter tutorials - java messaging services Example

In this chapter, we will learn how to write a simple test plan to test Java Messaging Service (JMS). JMS supports two types of messaging

Point-to-Point messaging

Queue messaging is generally used for transactions where the sender expects a response.
Messaging systems are quite different from normal HTTP requests. In HTTP, a single user sends a request and gets a response.

Topic messages are commonly known as pub/sub messaging. Topic messaging is generally used in cases where a message is published by a producer and consumed by multiple subscribers.

Let us see a test example for each of these. The pre-requisites for testing JMS are

We use Apache ActiveMQ in the example. There are various JMS servers like IBM WebSphere MQ (formerly MQSeries), Tibco, etc. Download it from the binaries from the Apache ActiveMQ website.
Unzip the archive, go to the decompressed directory, and run the following command from the command console to start the ActiveMQ server −
.\bin\activemq start

You can verify if the ActiveMQ server has started by visiting the admin interface at the following address http://localhost:8161/admin/.
If it asks for authentication, then enter the userid and password as admin. The screen is similar as shown below

Now copy the activemq-all-x.x.x.jar (XXX depending on the version) from the ActiveMQ unzipped directory to /home/manisha/apache-jmeter-2.9/lib.

Now let us write a JMeter test plan to test a JMS Point-to-Point messaging solution. The setup of the test is one thread group with one thread or user sending 2 messages each through a request queue.
Let us start the JMeter from /home/manisha/apache-jmeter2.9/bin/jmeter.sh.

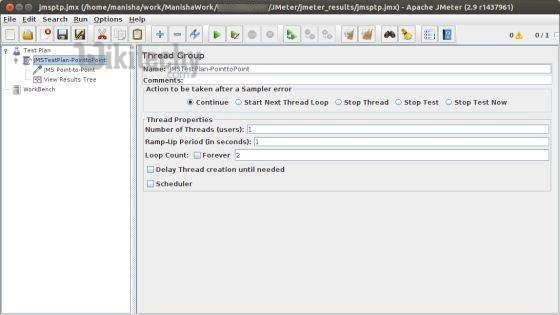

Create a Thread group.
Right-click the Test Plan node.
Select Add > Threads (Users) > Thread Group. Thread Group gets added under the Test Plan node.
Rename this Thread Group as JMSTestPlan-PointtoPoint.

We will change the Loop Count to two. Rest of the default properties of the Thread Group are retained.
It means one thread group with one thread or one user sends two messages each through a request queue.

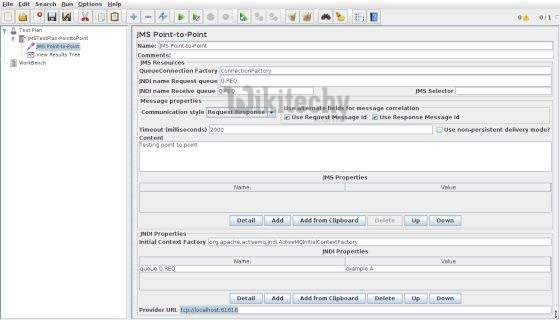

Now that we have defined the users, it is time to define the tasks that they will be performing. Start by adding the sampler JMS Point-to-Point to the Point-to-Point element.

The following property changes are made to the JMS Point-to-Point sampler element

Now let us write a JMeter test plan to test a JMS Provider. We will create one subscriber and one publisher. We will create one thread group and set each one to two iterations
First let us start the JMeter from /home/manisha/apache-jmeter2.9/bin/jmeter.sh.

Right-click the Test Plan
Select Add > Threads (Users) > Thread Group. Thread Group will get added under the Test Plan node.
Rename this Thread Group as JMS pub-sub user.

We will change the Loop Count to two. Rest of the default properties of the Thread Group are retained.
It means one thread group with one thread or one user sends two messages each through a request queue.
